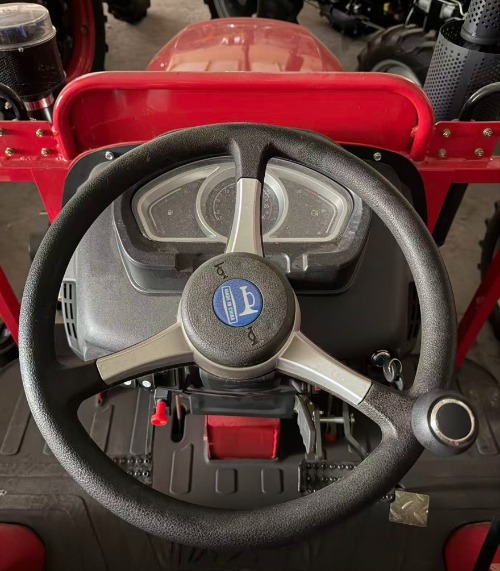

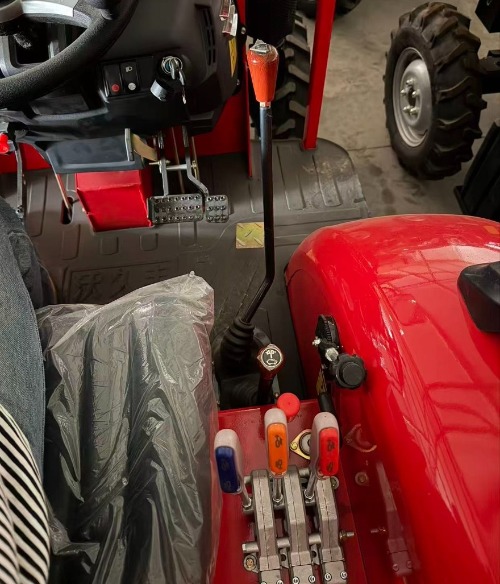

| 液压助力方向盘 | 8+8梭式换挡 |
 |
 |

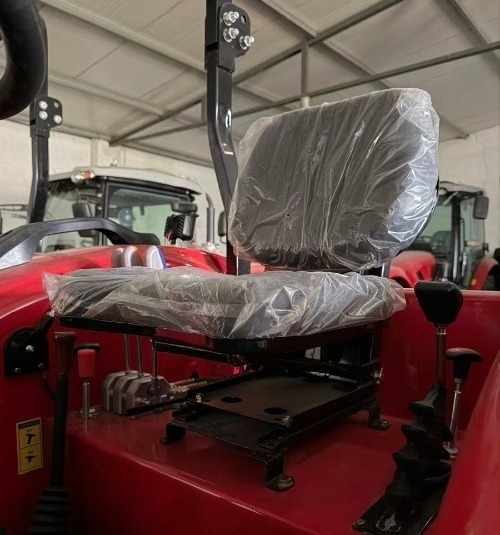

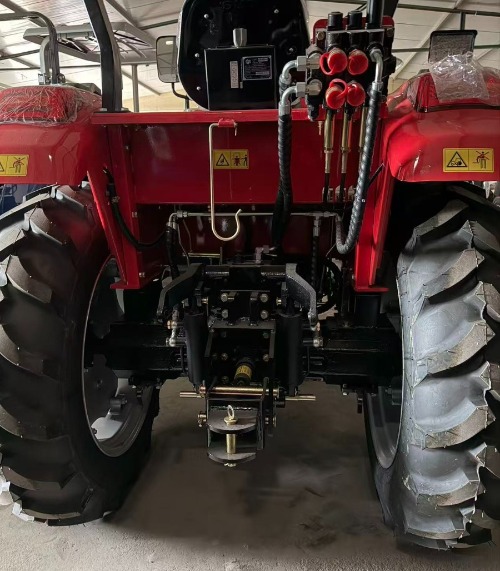

| 减震座椅 | 后悬架 |
产品展示
诚实卓效睿智进取务实勤勉服务客户
504拖拉机采用四缸柴油发动机，动力稳定，油耗经济，适用于旋耕、犁地、播种、运输等多种农业作业。
整车结构扎实，操作简单，适应农田、泥地、山地等复杂工况。液压提升有力，可匹配多种农机具，四驱系统通过性更强。
支持多种配置定制，满足不同市场需求。
|
|
| 液压助力方向盘 | 8+8梭式换挡 |
|
|
| 减震座椅 | 后悬架 |
| Tractor Specifications | |||||
| Brand Name: | WJF Tractor | Model/L×W×H(mm) | 50HP Flat Floor | 3400/1500/2560 | |
| 50HP with a cabin | 3350/1607/2650 | ||||
| Gears： | 8+2 | Drive Type： | Four-wheel drive | ||
| Weight (kg): | 1700 | Ground clearance (mm) | 370 | ||
| Wheelbase（mm） | 1900 | Rated traction force(N) | 16000 | ||
| Wheel track (mm) | front axle | 1350 | Theoretical speedkm/h) | forward speed | 10-40 |
| rear axle | 1450 | Reverse speed | 2.8-11.3 | ||
| Engine Specifications | |||||
| Engine Model | WD TE495 | ||||
| Rated power（kw/kp） | 36.8 | Rated speed(rpm) | 2400 | ||
| Cylinder bore and stroke (mm) | 95×100 | Displacement(L) | 2.816 | ||
| Drive system | |||||
| Clutch | 9-inch dual clutch | Gearbox | TYE | ||
| Tyre Mechanism | |||||
| Tyre | Front wheel | 750-16 | Steering Gear | Hydraulic power steering | |
| Rear wheel | 11.2-28 | Brake | Axle-locking brake | ||
| Working Device | |||||
| Hydraulic System | Lifting Capacity (kg) | 800 | P.T.O | Rotating Speed(rpm) | 540/720 |
| Suspension Model | TYE Three-point | Spline Size | 6 Spline | ||
| Work efficiency | 12hours | Fuel Consumption g(KW.h) | ≤252.3 | ||
| Engine oil temperature ≤105°C; coolant temperature 85-95°C | |||||
